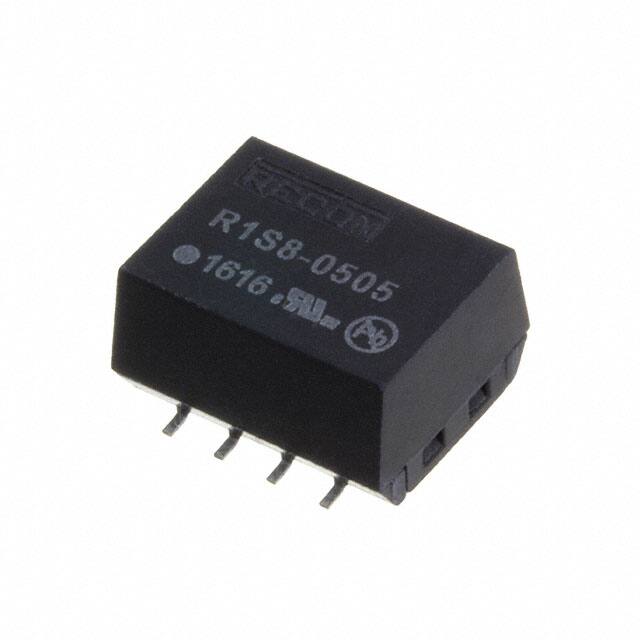

Factory Lead Time

10 Weeks

Mounting Type

PCB, Surface Mount

Package / Case

8-SMD Module

Number of Pins

8

Weight

1.1g

Voltage - Input (Nom)

5V

Power - Output (Max)

1W

Power Dissipation (Max)

1W

Operating Temperature

-40°C~100°C

Packaging

Tube

Series

ECONOLINE R1S (1W)

Size / Dimension

0.50Lx0.42W x 0.28 H 12.8mmx10.7mmx7.0mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Type

Isolated Module

Applications

ITE (Commercial)

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

255

Number of Functions

1

Terminal Pitch

2.54mm

Depth

10.7mm

Time@Peak Reflow Temperature-Max (s)

5

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

78%

Voltage - Isolation

1kV

Trim/Adjustable Output

NO

Current - Output (Max)

200mA

Current - Output

200mA

Output Power

1W

Max Output Voltage

5V

Voltage - Output

5V

Current - Output 1

200mA

Nominal Input Voltage

5V

Isolation

Isolated

Nominal Output Voltage

5V

Max Input Voltage (DC)

5.5V

Min Input Voltage (DC)

4.5V

Features

SCP

Height

6.7mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
